Suction Hose for High Pressure Feeding Unit

ไทย


Basic component of suction hose for high pressure feeding unit

Even the suction hose must resisted the high pressure level, the component of hose must be simply used and comfortable which must be apply with different kind of paint container. The material of each component must be able to use for long life service.

Suction Pipe Structure.png

Component of suction hose

  1. Rotary pump connection

  2. Vacuum-resistant suction hose with good resistance to solvents.

  3. Stable stainless steel suction tubes.

  4. Suction filter. The first frontier of cleaning paint for feeding unit.

Example of using suction hose with feeding unit

Suction System (Piston Pump).png

Example with piston pump

1. 5L Hopper kit

2. Suction hoses

3. Rigid suction tube DN16 or DN25

4. Suction tube for drum cover

5. Hose extension

6. Adapter and fittings

Connect the suction hose with piston pump

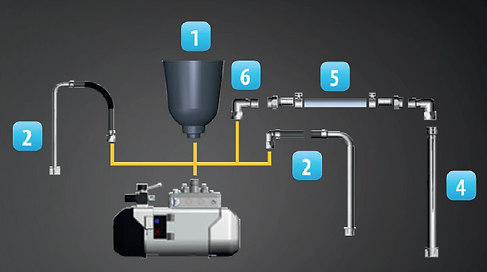

Suction System (Diaphragm Pump).png

Example with diaphragm pump uni

1. 5L Hopper kit

2. Suction hoses

3. Rigid suction tube DN16 or DN25

4. Suction tube for drum cover

5. Hose extension

6. Adapter and fittings

Connect the suction hose with diaphragm pump

Suction hose for flow rate at 40 CCM - 150 CCM per double stroke

The feeding unit is separated into 2 types. The normal type (40 CC - 150 CC) and large type 150 CC - 300 CC). Therefore, the suction hose must be separated into 2 categories in order to use with different type of pump.
Feeding unit which is available for this suction hose: Cobra 40-10, Cobra 40-25, Evomotion 20-30s, Puma 28-40, Puma 21-110, Leopard 35-70, Leopard 35-150, Jaguar 75-150 (minimum requirement use) In case of Protec 95-150, even the flow rate per double stroke is 150 CCM but the pump is categorized into large type and recommended pressure level at 400 bar and overall of component is built for extremely heavy duty application so it can not be used with this suction hose.

Hopper for Internal.png

5L Hopper

5L Hopper for diaphragm

5L Hopper

The hopper is built from special grade plastic which resist the solvent chemical and designed specially for feeding unit. There have available type for piston type and diaphragm type. For diaphragm type, the hopper include the reverse tube in this package.

Flexible Suction Hose

Flexible Suction Hose

Flexible suction hoses for piston and double diaphragm pumps, either with DN25 or DN16 hose made from solvent-resistant material. For containers with a height of up to 400 mm.

  • Suction hose with DN16 with stainless steel tube, connection M 36x2 length 1.2M and Filter connection G 3/8"

  • Suction hose with DN25 with stainless steel tube, connection M 36x2 length 1.2M and Filter connection M28 x 1.5

  • Suction hose with DN38 with stainless steel tube Filter connection G1/2" length 1.8 ม. and Filter connection G1/4"

Rigid suction pipes

Rigid suction pipes

Rigid suction pipes for piston pumps with an M36x2 external thread. No other tools are needed for sealing. The connection can be disconnected at any time for maintenance work. Made entirely from stainless steel and has 2 types are following below;

  • Suction pipe DN16 Fitting Connection G3/8" Length 380MM

  • Suction pipe DN25 Fitting Connection M28x1.5 Length 380 MM

Suction pipe for drum and drum cover

Suction pipe for drum and drum cover

Drum cover suction tubes DN 25 (1“) with M36 hose connection, straight design. Fit directly in the bushing of the WAGNER drum cover and are fixed with a clamp screw. There have 2 types following as below;

  • Suction pipe DN25-30L-SST Fitting Connection M36x2 Length 506MM and Filter Connection M28 x 1.5

  • Suction pipe DN25-200L-SST for 200L Drum Fitting Connection M36x2 Length 1,016MM and Filter Connection M28 x 1.5

And there also has accessories which include in suction pipe following below;

Bunghole

Bung adapter

Suction Filter

Suction Filter the first frontier for filter the material

Suction filters for rigid suction pipes and flexible suction hoses with different connecting threads. There have 2 types of filter are following as below;

  • Suction filter DN16-18mesh-SST. Filter Connection G3/8" Mesh width 1,000 Micron

  • Suction filter DN25-18mesh-SST Filter Connection M28x1.5 Mesh width 1,000 Micron

Suction Hose for flow rate at 150 CCM - 300 CCM

As the protec series must be used for extremely heavy duty, the normal suction hose can not be used. Even the Jaguar 75-150 which is the largest pump in normal type, it might be considered to use with suction hose for large pump.
Feeding unit which is available for this suction hose: Protec 95-150, Protec 62-240, Protec 75-200, Tiger 72-300, Jaguar 75-150 (Depend on consideration)

Flexible suction hoses for PROTEC

Flexible suction hoses for PROTEC

Flexible suction hoses for protective pistion pumps with DN 38 hose.  Fitting Connector G1/2" and for containers with a height of up to 400mm. For this suction hose, you can choose between suction hose only and completed set as following below code;

  • Code 2325818 Flexible Suction Hose PC (Only Hose)

  • Code 2352549 Flexible Suction Hose PC (Completed Set)

Flexible suction hoses for PROTEC

(Completed Set)

PC Rigid suction pipes

Rigid Suction Pipes PROTEC

Rigid suction pipes for PC piston pumps with G1 1/2“ external thread. Ideal for drawing in viscous products thanks to the short suction travel, complete with paint filter. There have 2 types for this pipes

  • SST Suction Pipe PC-270-CPL with stainless material Fitting Connection G1-1/2" pipe length 270MM

  • SST suction pipe PC-475-CPL with stainless material. Fitting Connection G1-1/2" pipe lenght 475MM

Suction Filter for PC

Suction Filter for PC

DN38 Suction Filter filters for rigid suction pipes and systems for protective coating application Provide the mesh level at 1,400 micron and Fitting Connector G1-1/4"
