Technical Data
HP Piston Feeding Unit 40 CCM - 150 CCM

ไทย

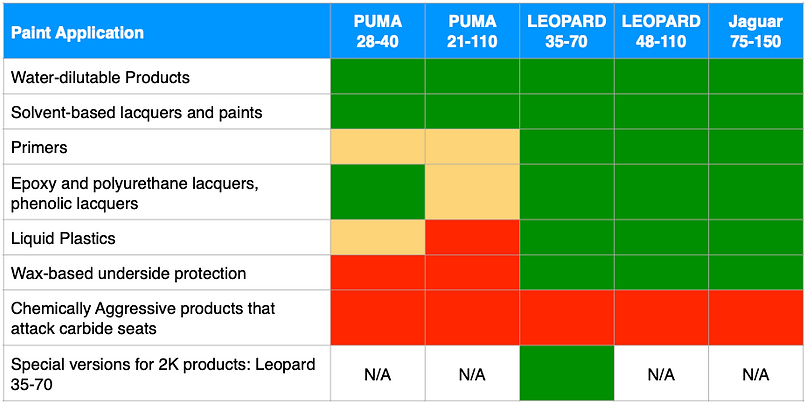

Matching Table of Feeding Unit and Paint Application

Piston Pump Application (ENG).png

Green: Recommend

Yellow: Suitable

Red: Not Suitable

How to select the high pressure piston pump unit



Before start to choose piston pump unit, please check the type of paint application to compare with ice breaker piston pump specification in order to find out that it can be used with this paint or not by checking the piston series which is imported to distribute in Thailand.



After choose the feeding unit and found out that it is available for paint application as your need, next step is about the checking the nozzle table to select the actual feeding unit. Some paint application can be applied for every type of pump but some paint has limitation to apply with feeding unit so the key factor to select the feeding unit is following as below;

- Paint Specification

- Long-term plan for using feeding unit (It might be used other paint in the future after finish the project).

- Type of spray gun

Even though the paint specification is suitable for minimum requirement of feeding unit. The user may select the higher specification feeding unit for long term plan. Please see more details of nozzle table.

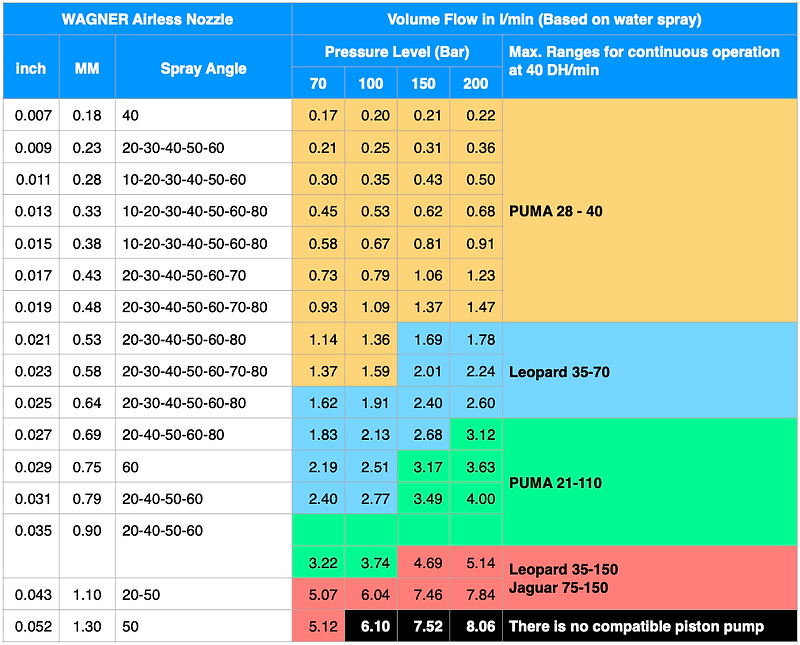

Nozzle Table for HP Piston Unit (Flow Rate 40 CCM - 150 CCM)

Flow Rate Comparative Table (0 - 150) (ENG).png

Technical Data of HP Piston Unit in each series

(Please click "More Details" for further information)

High Pressure Piston Pump
EVOMOTION 20-30S


Overall Specification:

  • Max. Pressure: 160 Bar

  • Max. Double Strokes per 1 min: 60 DH

  • Max. Flow Rate: 1,800 ML

  • Air Inlet Connector for Compressor: 8 MM

  • Weight: 17 Kg

  • Max. Nozzle Size (At Pressure 100 Bar): 0.019"

  • Smallest Piston Pump

High Pressure Piston Pump
PUMA 28-40


Overall Specification:

  • Max. Pressure: 224 Bar

  • Max. Double Strokes per 1 min: 60 DH

  • Max. Flow Rate: 2,400 ML

  • Air Inlet Connector for Compressor: G1/2"

  • Weight: 16 Kg

  • Max. Nozzle Size (At Pressure 100 Bar): 0.023"

High Pressure Piston Pump
LEOPARD 35-70


Overall Specification:

  • Max. Pressure: 250 Bar

  • Max. Double Strokes per 1 min: 60 DH

  • Max. Flow Rate: 4,200 ML

  • Air Inlet Connector for Compressor: G1/2"

  • Weight: 26 Kg

  • Max. Nozzle Size (At Pressure 100 Bar): 0.031"

High Pressure Piston Pump
PUMA 21-110

Puma 15-150.jpg

Overall Specification:

  • Max. Pressure: 168 Bar

  • Max. Double Strokes per 1 min: 60 DH

  • Max. Flow Rate: 6,600 ML

  • Air Inlet Connector for Compressor: G1/2"

  • Weight: 28 Kg

  • Max. Nozzle Size (At Pressure 100 Bar): 0.031"

High Pressure Piston Pump
LEOPARD 35-150


Overall Specification:

  • Max. Pressure: 270 Bar

  • Max. Double Strokes per 1 min: 60 DH

  • Max. Flow Rate: 9,000 ML

  • Air Inlet Connector for Compressor: G1/2"

  • Weight: 36 Kg

  • Max. Nozzle Size (At Pressure 100 Bar): 0.043"

High Pressure Piston Pump
JAGUAR 75-150


Overall Specification:

  • Max. Pressure: 530 Bar

  • Max. Double Strokes per 1 min: 60 DH

  • Max. Flow Rate: 9,000 ML

  • Air Inlet Connector for Compressor: G1"

  • Weight: 53 Kg

  • Max. Nozzle Size (At Pressure 100 Bar): 0.043"
