Automated Dot Matrix Marking
The good marking system equipment must have fast working operation feature and precise feature in order to make project to be perfect performance.
WALTHER PILOT dot matrix and marking block systems are designed for operation in combination with an appropriate control CPU. They will apply the relevant alphanumeric identification codes in continuous operation onto your strips, panels, pipes, tubes, coils and etc.
As the precise performance feature combine with fast working feature, it make this equipment to be appropriate for quick paint injection and provide the constant spray pattern to provide the good performance work throughout the operation session in high speed working rates.
Character heights can range between 30 mm and 200 mm, with the dot size and paint application thickness individually adjustable at each gun.
Our dot marking systems also allow for the application of heat-resistant paints, unlike many other identification systems.
Several Uses for multiple industries
-
Work orientation marking - i.e. marking where a pipe is to be bent or where a weld run is located
-
Workpiece defect marking - where an automatic system detects and triggers the gun exactly where the defect is located
-
Sealing of PCB (Printed Circuit Board) - surfaces with protective varnish
-
Application of locking cement
-
Metered addition of hardeners and adhesive compounds
-
Color coding of steel bars with lines or dots


Example of Sealing surface on PCB

Example of create letter on workpiece

Example of marking on workpiece
Example of Workpiece

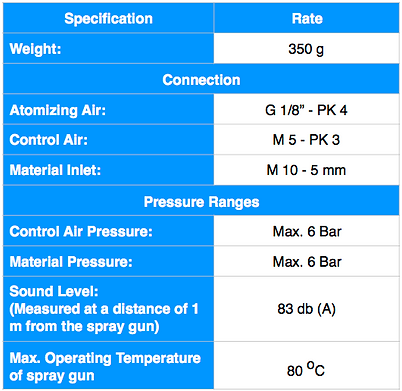

WALTHER PILOT SIGNIER

Pilot Signier

Automatic Spray Gun for Don't matrix and line marking
A fully automatic spray gun for dot matrix or line marking. Gun body is nickel-plated brass. Needle & nozzle are stainless steel. Round or wide air caps available.
Additional models available: recirculation version, flushing version, recirculation version with flushing function.
Nozzle Sizes Available (mm)
0.3 , 0.5 , 0.8 , 1.0 , 1.2 , 1.5
Applicable Material
-
Paints and lacquers
-
greases, oils and corrosion preventives
-
Adhesive compounds
-
Ceramic glazes
-
Pickling solutions
The material which is not mention on above should generally not be applied with this spray gun.


WALTHER PILOT WA 200
Pilot WA200
Marking Spray Gun WA200
Fully automatic spray marking gun with stainless steel front material passageways. Needle & nozzle are also stainless steel. Round or wide air caps available.
Nozzle Sizes Available (mm)
0.3 , 0.5 , 0.8 , 1.0 , 1.2 , 1.5
Applicable Material
-
Paints and lacquers
-
greases, oils and corrosion preventives
-
Adhesive compounds
-
Ceramic glazes
-
Pickling solutions
The material which is not mention on above should generally not be applied with this spray gun.


Example of working procedure of Marking spray gun

Working Procedure
Example of marking spray gun operating by using with diaphragm pump and pressure tank.

Marking Block System
Supporting block to install with marking spray gun to create dot-matrix letter.
