Pilot Premium Air Spray Gun

ไทย

This spray gun can use both HVLP spray method and Fine Spray method. There have 3 types of Air-cap; Blue Air-cap is HVLP Plus (Unique technology from Walther Pilot). Green Air-cap is HVLP. and Silver Air-cap is standard spray. It is applicable for every surface finishing work and provide the optimal coating quality. It can use with high viscosity material paint.

Pilot Premium Feather



  • 3 different air-cap set provide fine atomizing and high deliver efficiency.

  • Ergonomic design in order to support to hold easily and comfort delivery.

  • Made from stainless steel for parts in touch with material paint.

  • Sealing elements solvent resistant.

  • Needle sealing can be adjusted or changed from outside.

Application



  • Furniture industry, wood, automotive paint shop, plastic

  • Applicable with water-based paint, solvent-based paint, lacquer, varnish and chemical supply.

Air Cap of Pilot Premium

Blue Air-Cap HVLP Plus



Pressure: 0.7 - 1.5 Bar

Deliver Efficiency: 88%



Comparative Grading by characteristic:

Atomizing Quality: AA

Material Saving: AA

Working Speed: AA

Green Air-Cap HVLP



Pressure: Max 0.7 Bar

Deliver Efficiency: >65%



Comparative Grading by characteristic:

Atomizing Quality: A

Material Saving: AA

Working Speed: A

Silver Air-Cap Standard



Pressure: 1.5 - 6 Bar

Deliver Efficiency: <65%



Comparative Grading by characteristic:

Atomizing Quality: AAA

Material Saving: C

Working Speed: AAA

The figure amount and grade are comparative data to show the different between each air-cap type. The result is an  innovative of HVLPPlus Air-Cap support high material saving and an excellent surface finish. The deliver efficiency is much higher than ordinary HVLP spray gun.

Technical data of Pilot Premium for spray gun section

Pilot Premium Standard Type

Pressure type (left) Gravity type (right)

Pilot Premium HVLP Plus Type

Gravity type (left) pressure type (right)

Pilot Premium HVLP Plus Type

Gravity type (left) pressure type (right)

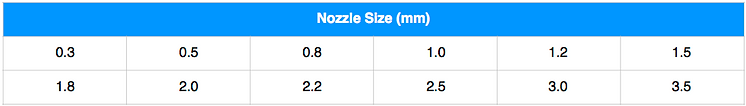

Technical Data for air consumption rate and nozzle
